Chapter 7: Multi-Agent Collaboration

While a monolithic agent architecture can be effective for well-defined problems, its capabilities are often constrained when faced with complex, multi-domain tasks. The Multi-Agent Collaboration pattern addresses these limitations by structuring a system as a cooperative ensemble of distinct, specialized agents. This approach is predicated on the principle of task decomposition, where a high-level objective is broken down into discrete sub-problems. Each sub-problem is then assigned to an agent possessing the specific tools, data access, or reasoning capabilities best suited for that task.

单体智能体架构在边界清晰的问题上往往行之有效，但面对复杂、跨领域任务时，能力很快就会触及瓶颈。多智能体协作模式(Multi-Agent Collaboration)通过把系统组织成一组彼此配合、各有专长的智能体，来化解这些局限。其前提是任务分解：先把高层目标拆成若干子问题，再分别交给在工具、数据访问或推理能力上最合适的智能体。

For example, a complex research query might be decomposed and assigned to a Research Agent for information retrieval, a Data Analysis Agent for statistical processing, and a Synthesis Agent for generating the final report. The efficacy of such a system is not merely due to the division of labor but is critically dependent on the mechanisms for inter-agent communication. This requires a standardized communication protocol and a shared ontology, allowing agents to exchange data, delegate sub-tasks, and coordinate their actions to ensure the final output is coherent.

例如，一个复杂研究任务可以拆成几部分：研究智能体负责检索，数据分析智能体负责统计处理，综合智能体负责撰写最终报告。此类系统的成效不仅来自分工，更取决于智能体之间的通信机制：需要标准化的协议和共享语义，使它们能够交换数据、委派子任务并协调行动，从而保证最终产出连贯一致。

This distributed architecture offers several advantages, including enhanced modularity, scalability, and robustness, as the failure of a single agent does not necessarily cause a total system failure. The collaboration allows for a synergistic outcome where the collective performance of the multi-agent system surpasses the potential capabilities of any single agent within the ensemble.

这种分布式架构带来更高的模块化、可扩展性与鲁棒性：单个智能体失效未必会拖垮整个系统。协作还能形成协同效应，使多智能体系统的整体表现超出任一单体的能力上限。

Multi-Agent Collaboration Pattern Overview

The Multi-Agent Collaboration pattern involves designing systems where multiple independent or semi-independent agents work together to achieve a common goal. Each agent typically has a defined role, specific goals aligned with the overall objective, and potentially access to different tools or knowledge bases. The power of this pattern lies in the interaction and synergy between these agents.

多智能体协作模式(Multi-Agent Collaboration)，是指设计一个由多个独立或半独立智能体，协同达成共同目标的系统。各智能体通常有清晰的角色、与总体目标对齐的子目标，并可调用不同的工具或知识库。该模式的力量，来自智能体之间的交互与协同效应。

Collaboration can take various forms:

协作可呈现多种形式：

• Sequential Handoffs: One agent completes a task and passes its output to another agent for the next step in a pipeline (similar to the Planning pattern, but explicitly involving different agents).
• Parallel Processing: Multiple agents work on different parts of a problem simultaneously, and their results are later combined.
• Debate and Consensus: Multi-Agent Collaboration where Agents with varied perspectives and information sources engage in discussions to evaluate options, ultimately reaching a consensus or a more informed decision.
• Hierarchical Structures: A manager agent might delegate tasks to worker agents dynamically based on their tool access or plugin capabilities and synthesize their results. Each agent can also handle relevant groups of tools, rather than a single agent handling all the tools.
• Expert Teams: Agents with specialized knowledge in different domains (e.g., a researcher, a writer, an editor) collaborate to produce a complex output.
• Critic-Reviewer: Agents create initial outputs such as plans, drafts, or answers. A second group of agents then critically assesses this output for adherence to policies, security, compliance, correctness, quality, and alignment with organizational objectives. The original creator or a final agent revises the output based on this feedback. This pattern is particularly effective for code generation, research writing, logic checking, and ensuring ethical alignment. The advantages of this approach include increased robustness, improved quality, and a reduced likelihood of hallucinations or errors.

• 顺序交接： 某个智能体完成任务后，将输出交给下一个智能体，推动流水线进入下一步（与规划模式相近，但明确涉及多个智能体）。
• 并行处理： 多个智能体同时处理问题的不同片段，随后再合并结果。
• 辩论与共识： 持有不同视角与信息源的智能体，通过讨论评估备选项，最终形成共识，或做出信息更充分、判断更周全的决策。
• 层级结构： 管理者智能体，可根据下属的工具或插件能力动态分派任务并汇总结果；各智能体也可分管部分工具，避免由单一智能体包揽全部工具。
• 专家团队： 具备不同领域专长的智能体（如研究、写作、编辑）协作产出复杂成果。
• 批评者—审阅者： 一组智能体先产出初稿（计划、草稿或答复），另一组再从政策遵循、安全、合规、正确性、质量以及与组织目标是否一致等维度进行审阅；最后由原作者或终审智能体据反馈修订。该模式特别适用于代码生成、研究写作、逻辑校验与伦理对齐等场景，有助于提升鲁棒性与输出质量，并降低幻觉与差错风险。

A multi-agent system (see Fig.1) fundamentally comprises the delineation of agent roles and responsibilities, the establishment of communication channels through which agents exchange information, and the formulation of a task flow or interaction protocol that directs their collaborative endeavors.

多智能体系统（见图 1）在结构上至少包含三个关键要素：明确各智能体的角色与职责、建立信息交换通道，以及制定协作所遵循的任务流或交互协议。

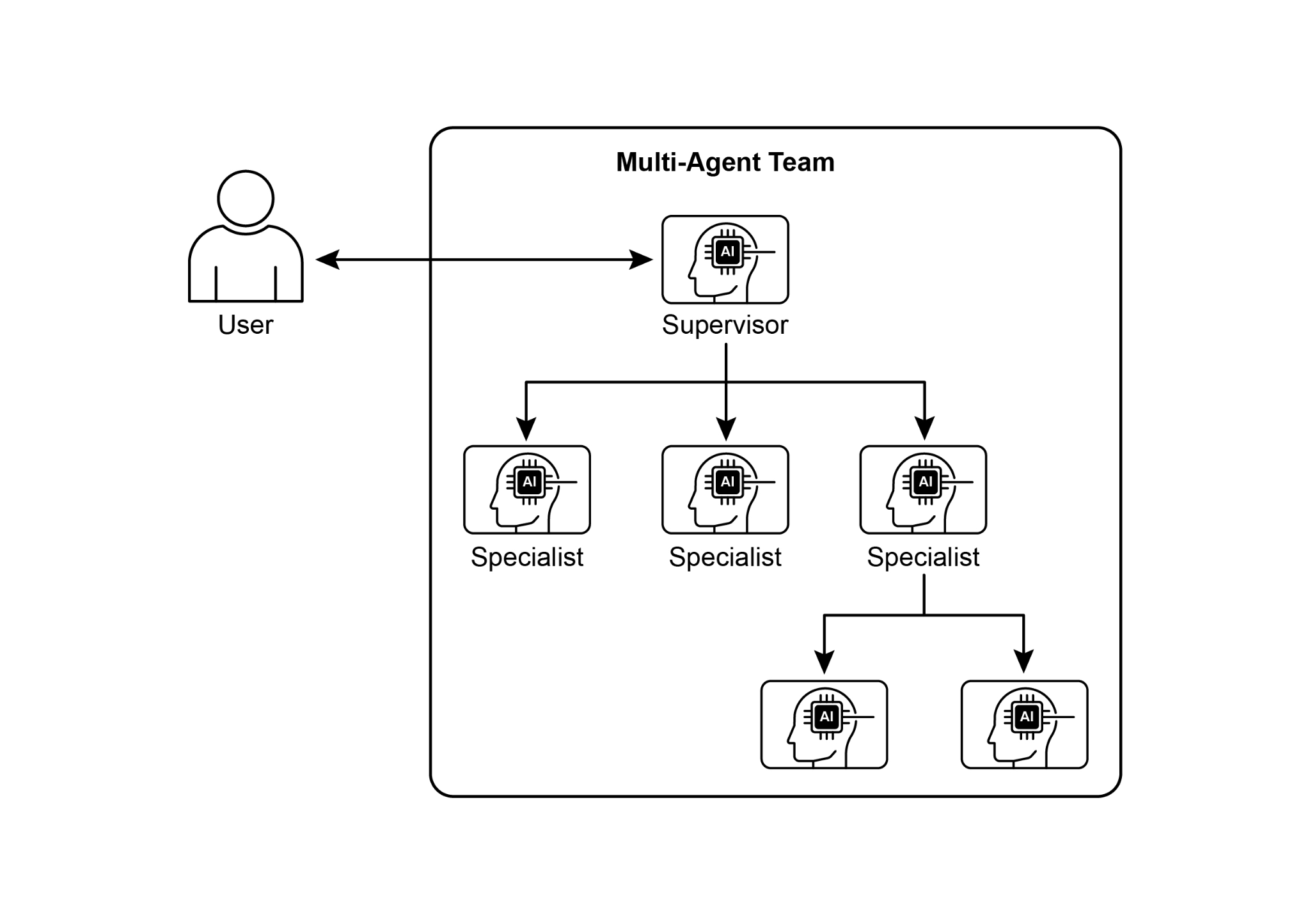

Fig.1: Example of multi-agent system

图 1：多智能体系统示意。

Frameworks such as Crew AI and Google ADK are engineered to facilitate this paradigm by providing structures for the specification of agents, tasks, and their interactive procedures. This approach is particularly effective for challenges necessitating a variety of specialized knowledge, encompassing multiple discrete phases, or leveraging the advantages of concurrent processing and the corroboration of information across agents.

Crew AI、Google ADK 等框架为描述智能体、任务及其交互流程提供了结构化能力，从而支撑这一范式。它尤其适用于需要多种专业知识、包含多个相对独立阶段，或希望利用并发执行与跨智能体交叉验证的场景。

Practical Applications & Use Cases

Multi-Agent Collaboration is a powerful pattern applicable across numerous domains:

多智能体协作在许多领域都很有价值：

• Complex Research and Analysis: A team of agents could collaborate on a research project. One agent might specialize in searching academic databases, another in summarizing findings, a third in identifying trends, and a fourth in synthesizing the information into a report. This mirrors how a human research team might operate.
• Software Development: Imagine agents collaborating on building software. One agent could be a requirements analyst, another a code generator, a third a tester, and a fourth a documentation writer. They could pass outputs between each other to build and verify components.
• Creative Content Generation: Creating a marketing campaign could involve a market research agent, a copywriter agent, a graphic design agent (using image generation tools), and a social media scheduling agent, all working together.
• Financial Analysis: A multi-agent system could analyze financial markets. Agents might specialize in fetching stock data, analyzing news sentiment, performing technical analysis, and generating investment recommendations.
• Customer Support Escalation: A front-line support agent could handle initial queries, escalating complex issues to a specialist agent (e.g., a technical expert or a billing specialist) when needed, demonstrating a sequential handoff based on problem complexity.
• Supply Chain Optimization: Agents could represent different nodes in a supply chain (suppliers, manufacturers, distributors) and collaborate to optimize inventory levels, logistics, and scheduling in response to changing demand or disruptions.
• Network Analysis & Remediation: Autonomous operations benefit greatly from an agentic architecture, particularly in failure pinpointing. Multiple agents can collaborate to triage and remediate issues, suggesting optimal actions. These agents can also integrate with traditional machine learning models and tooling, leveraging existing systems while simultaneously offering the advantages of Generative AI.

• 复杂研究与分析： 多智能体可以像人类研究团队一样分工，分别负责学术库检索、文献摘要、趋势研判和报告整合。
• 软件开发： 可以由需求分析、代码生成、测试、文档等智能体顺序传递产出，共同构建和验证组件。
• 创意内容生成： 一个营销活动可以由市场调研、文案、平面设计（借助图像生成工具）和社交媒体排期等智能体协同完成。
• 金融分析： 不同智能体可以分别专注于行情拉取、新闻情绪分析、技术分析和投资建议。
• 客服升级： 一线智能体先处理常规咨询，再把复杂问题逐级交给技术或账务专家智能体。
• 供应链优化： 以智能体分别代表供应商、制造商、分销商等节点，协同优化库存、物流与排期，以响应需求波动或突发扰动。
• 网络分析与修复： 自主运维尤其适合采用智能体架构来定位故障；多智能体可协作完成分诊、给出修复建议并推荐最优动作，也可以与传统机器学习模型和运维工具集成，在复用既有系统的同时发挥生成式 AI 的优势。

The capacity to delineate specialized agents and meticulously orchestrate their interrelationships empowers developers to construct systems exhibiting enhanced modularity, scalability, and the ability to address complexities that would prove insurmountable for a singular, integrated agent.

通过清晰划分专业化智能体并合理编排其协作关系，开发者可以构建出模块化程度更高、更易扩展，也能应对单一整合式智能体难以胜任之复杂问题的系统。

Multi-Agent Collaboration: Exploring Interrelationships and Communication Structures

Understanding the intricate ways in which agents interact and communicate is fundamental to designing effective multi-agent systems. As depicted in Fig. 2, a spectrum of interrelationship and communication models exists, ranging from the simplest single-agent scenario to complex, custom-designed collaborative frameworks. Each model presents unique advantages and challenges, influencing the overall efficiency, robustness, and adaptability of the multi-agent system.

理解智能体如何交互与通信，是设计高效多智能体系统的基础。如图 2 所示，从最简单的单智能体，到复杂的定制化协作框架，关系/协作结构与通信方式构成了一条从简到繁的谱系；不同模型各有优劣，并共同影响系统的效率、鲁棒性与适应性。

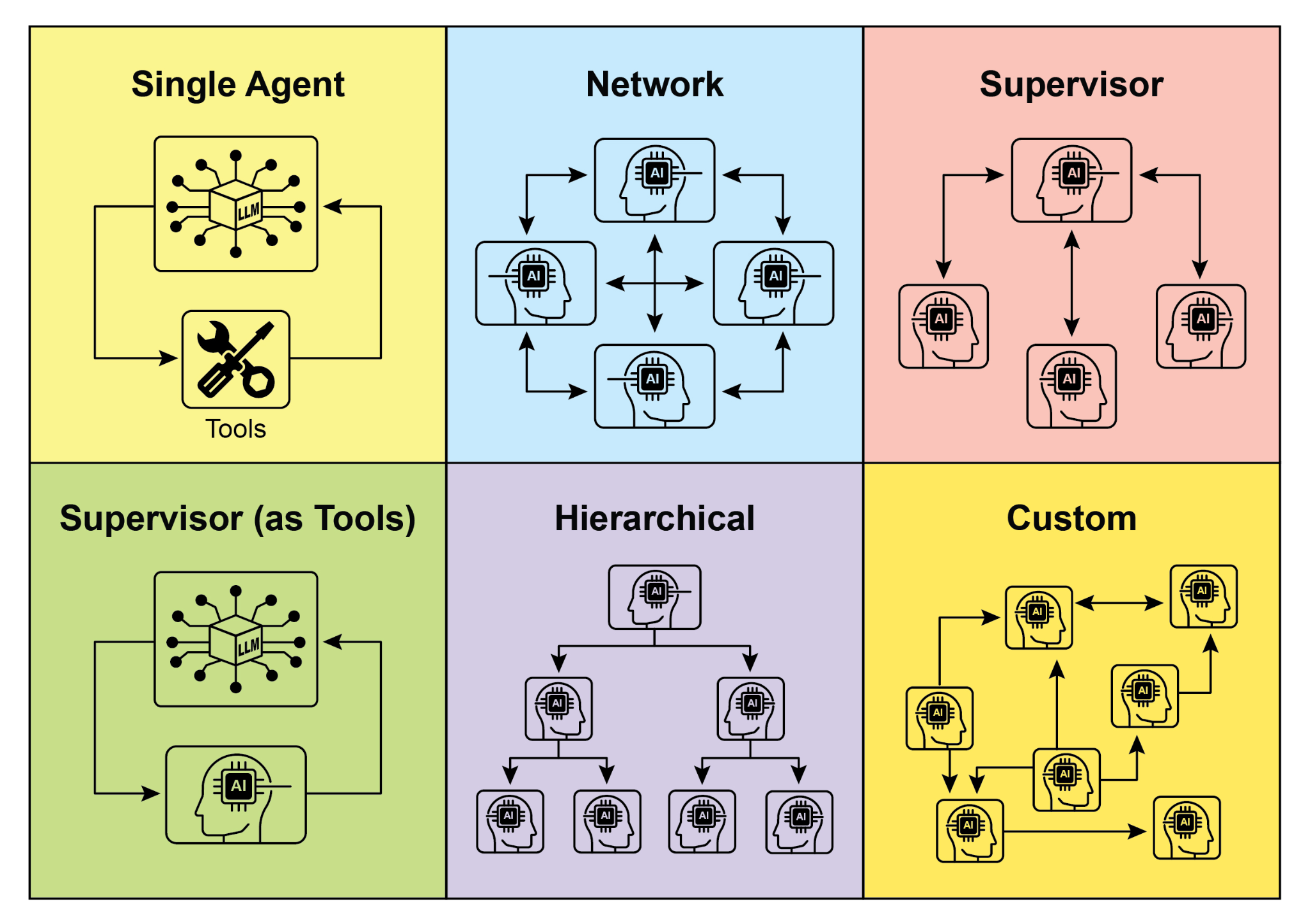

Fig. 2: Agents communicate and interact in various ways.

图 2：智能体以多种拓扑与机制进行通信与交互。

1. Single Agent

At the most basic level, a "Single Agent" operates autonomously without direct interaction or communication with other entities. While this model is straightforward to implement and manage, its capabilities are inherently limited by the individual agent's scope and resources. It is suitable for tasks that are decomposable into independent sub-problems, each solvable by a single, self-sufficient agent.

在最基础的形态下，「单智能体」自主运行，不与其他实体直接交互或通信。它实现和管理成本较低，但能力受单体范围与资源限制。适用于那些可以拆成彼此独立子问题、且每个子问题都能由单个智能体独立完成的任务。

2. Network

The "Network" model represents a significant step towards collaboration, where multiple agents interact directly with each other in a decentralized fashion. Communication typically occurs peer-to-peer, allowing for the sharing of information, resources, and even tasks. This model fosters resilience, as the failure of one agent does not necessarily cripple the entire system. However, managing communication overhead and ensuring coherent decision-making in a large, unstructured network can be challenging.

「网络」模型标志着向协作迈进的重要一步：多智能体以去中心化方式互联，通常通过点对点通信共享信息、资源，甚至分配任务。单点失效未必会瘫痪全局，因此系统更具韧性。但在规模庞大、拓扑松散的网络中，控制通信开销并维持决策一致性仍然很有挑战。

3. Supervisor

In the "Supervisor" model, a dedicated agent, the "supervisor," oversees and coordinates the activities of a group of subordinate agents. The supervisor acts as a central hub for communication, task allocation, and conflict resolution. This hierarchical structure offers clear lines of authority and can simplify management and control. However, it introduces a single point of failure (the supervisor) and can become a bottleneck if the supervisor is overwhelmed by a large number of subordinates or complex tasks.

「监督者」模型由一个专职监督智能体统筹下属群体，充当通信、任务分派和冲突调解的中心枢纽。这种层级结构权责清晰、便于管理，但监督者本身也会带来单点故障风险；当下属数量很多或任务非常复杂时，它还可能成为性能瓶颈。

4. Supervisor as a Tool

This model is a nuanced extension of the "Supervisor" concept, where the supervisor's role is less about direct command and control and more about providing resources, guidance, or analytical support to other agents. The supervisor might offer tools, data, or computational services that enable other agents to perform their tasks more effectively, without necessarily dictating their every action. This approach aims to leverage the supervisor's capabilities without imposing rigid top-down control.

这是对「监督者」角色的进一步延伸：监督者不再主要负责直接指挥，而是更多地向其他智能体提供资源、指导或分析支持（如工具、数据、算力等），未必干预每一步行动。这样做是为了发挥监督者的能力优势，同时避免过于僵化的自上而下控制。

5. Hierarchical

The "Hierarchical" model expands upon the supervisor concept to create a multi-layered organizational structure. This involves multiple levels of supervisors, with higher-level supervisors overseeing lower-level ones, and ultimately, a collection of operational agents at the lowest tier. This structure is well-suited for complex problems that can be decomposed into sub-problems, each managed by a specific layer of the hierarchy. It provides a structured approach to scalability and complexity management, allowing for distributed decision-making within defined boundaries.

「层级」模型将监督关系扩展为多层组织：高层监督低层，最底层则是执行型智能体集群。它适用于那些可以递归分解、并由不同层级分别承接的复杂问题，为扩展性和复杂度管理提供了结构化路径，同时在既定边界内保留分布式决策空间。

6. Custom

The "Custom" model represents the ultimate flexibility in multi-agent system design. It allows for the creation of unique interrelationship and communication structures tailored precisely to the specific requirements of a given problem or application. This can involve hybrid approaches that combine elements from the previously mentioned models, or entirely novel designs that emerge from the unique constraints and opportunities of the environment. Custom models often arise from the need to optimize for specific performance metrics, handle highly dynamic environments, or incorporate domain-specific knowledge into the system's architecture. Designing and implementing custom models typically requires a deep understanding of multi-agent systems principles and careful consideration of communication protocols, coordination mechanisms, and emergent behaviors.

「定制」模型代表了多智能体系统设计中的最高灵活度：可以针对具体问题或应用场景量身构建关系与通信拓扑，既可以组合前述模型的要素，也可以依据环境约束与机会从零设计。它通常用于优化关键性能指标、适应高度动态的环境，或把领域知识直接嵌入系统架构。设计和实现这类模型，往往需要对多智能体系统原理有深入理解，并对通信协议、协调机制与涌现行为作出审慎权衡。

In summary, the choice of interrelationship and communication model for a multi-agent system is a critical design decision. Each model offers distinct advantages and disadvantages, and the optimal choice depends on factors such as the complexity of the task, the number of agents, the desired level of autonomy, the need for robustness, and the acceptable communication overhead. Future advancements in multi-agent systems will likely continue to explore and refine these models, as well as develop new paradigms for collaborative intelligence.

总之，为多智能体系统选择何种关系结构与通信模型，是一项关键的设计决策。每种模型都有各自的优势与局限，而最优选择取决于任务复杂度、智能体数量、期望的自主程度、对鲁棒性的要求，以及可接受的通信开销。未来，多智能体系统的发展很可能会继续探索并完善这些模型，同时催生新的协作智能范式。

Hands-On code (Crew AI)

This Python code defines an AI-powered crew using the CrewAI framework to generate a blog post about AI trends. It starts by setting up the environment, loading API keys from a .env file. The core of the application involves defining two agents: a researcher to find and summarize AI trends, and a writer to create a blog post based on the research.

Two tasks are defined accordingly: one for researching the trends and another for writing the blog post, with the writing task depending on the output of the research task. These agents and tasks are then assembled into a Crew, specifying a sequential process where tasks are executed in order. The Crew is initialized with the agents, tasks, and a language model (specifically the "gemini-2.0-flash" model). The main function executes this crew using the kickoff() method, orchestrating the collaboration between the agents to produce the desired output. Finally, the code prints the final result of the crew's execution, which is the generated blog post.

该 Python 示例借助 CrewAI 组建了一支 Crew，用于生成关于 AI 趋势的博客文章：先配置运行环境并从 .env 读取 API 密钥；随后定义两名核心智能体，研究员负责检索并汇总趋势，作者根据研究结果撰写博文；任务与角色一一对应，且写作任务显式依赖研究任务的输出；最后将二者编入 Crew，设定为顺序执行流程，并在 main 中通过 kickoff() 编排协作，输出最终博文。

import os
from dotenv import load_dotenv
from crewai import Agent, Task, Crew, Process
from langchain_google_genai import ChatGoogleGenerativeAI


def setup_environment():
    """Loads environment variables and checks for the required API key."""
    load_dotenv()
    if not os.getenv("GOOGLE_API_KEY"):
        raise ValueError("GOOGLE_API_KEY not found. Please set it in your .env file.")


def main():
    """
    Initializes and runs the AI crew for content creation using the latest Gemini model.
    """
    setup_environment()

    # Define the language model to use.
    # Updated to a model from the Gemini 2.0 series for better performance and features.
    # For cutting-edge (preview) capabilities, you could use "gemini-2.5-flash".
    llm = ChatGoogleGenerativeAI(model="gemini-2.0-flash")

    # Define Agents with specific roles and goals
    researcher = Agent(
        role='Senior Research Analyst',
        goal='Find and summarize the latest trends in AI.',
        backstory="You are an experienced research analyst with a knack for identifying key trends and synthesizing information.",
        verbose=True,
        allow_delegation=False,
    )

    writer = Agent(
        role='Technical Content Writer',
        goal='Write a clear and engaging blog post based on research findings.',
        backstory="You are a skilled writer who can translate complex technical topics into accessible content.",
        verbose=True,
        allow_delegation=False,
    )

    # Define Tasks for the agents
    research_task = Task(
        description="Research the top 3 emerging trends in Artificial Intelligence in 2024-2025. Focus on practical applications and potential impact.",
        expected_output="A detailed summary of the top 3 AI trends, including key points and sources.",
        agent=researcher,
    )

    writing_task = Task(
        description="Write a 500-word blog post based on the research findings. The post should be engaging and easy for a general audience to understand.",
        expected_output="A complete 500-word blog post about the latest AI trends.",
        agent=writer,
        context=[research_task],
    )

    # Create the Crew
    blog_creation_crew = Crew(
        agents=[researcher, writer],
        tasks=[research_task, writing_task],
        process=Process.sequential,
        llm=llm,
        verbose=2,  # Set verbosity for detailed crew execution logs
    )

    # Execute the Crew
    print("## Running the blog creation crew with Gemini 2.0 Flash... ##")
    try:
        result = blog_creation_crew.kickoff()
        print("\n------------------\n")
        print("## Crew Final Output ##")
        print(result)
    except Exception as e:
        print(f"\nAn unexpected error occurred: {e}")


if __name__ == "__main__":
    main()

We will now delve into further examples within the Google ADK framework, with particular emphasis on hierarchical, parallel, and sequential coordination paradigms, alongside the implementation of an agent as an operational instrument.

下文将继续介绍 Google ADK 中的示例，重点覆盖层级、并行和顺序等协调范式，并演示如何把智能体封装成可调用工具。

Hands-on Code (Google ADK)

The following code example demonstrates the establishment of a hierarchical agent structure within the Google ADK through the creation of a parent-child relationship. The code defines two types of agents: LlmAgent and a custom TaskExecutor agent derived from BaseAgent. The TaskExecutor is designed for specific, non-LLM tasks and in this example, it simply yields a "Task finished successfully" event. An LlmAgent named greeter is initialized with a specified model and instruction to act as a friendly greeter. The custom TaskExecutor is instantiated as task_doer. A parent LlmAgent called coordinator is created, also with a model and instructions. The coordinator's instructions guide it to delegate greetings to the greeter and task execution to the task_doer. The greeter and task_doer are added as sub-agents to the coordinator, establishing a parent-child relationship. The code then asserts that this relationship is correctly set up. Finally, it prints a message indicating that the agent hierarchy has been successfully created.

以下示例演示如何在 Google ADK 中通过父子关系搭建层级智能体：一方面定义 LlmAgent，另一方面实现一个继承 BaseAgent 的 TaskExecutor（本例面向非 LLM 任务，只产出「任务成功完成」事件）。随后分别实例化 greeter 与 task_doer，并以 coordinator 作为父智能体，在指令中要求它把问候委派给 greeter、把任务执行委派给 task_doer。最后通过断言验证父子关系，并打印层级创建成功的提示。

from typing import AsyncGenerator

from google.adk.agents import LlmAgent, BaseAgent
from google.adk.agents.invocation_context import InvocationContext
from google.adk.events import Event


# Correctly implement a custom agent by extending BaseAgent
class TaskExecutor(BaseAgent):
    """A specialized agent with custom, non-LLM behavior."""
    name: str = "TaskExecutor"
    description: str = "Executes a predefined task."

    async def _run_async_impl(self, context: InvocationContext) -> AsyncGenerator[Event, None]:
        """Custom implementation logic for the task."""
        # This is where your custom logic would go.
        # For this example, we'll just yield a simple event.
        yield Event(author=self.name, content="Task finished successfully.")


# Define individual agents with proper initialization
# LlmAgent requires a model to be specified.
greeter = LlmAgent(
    name="Greeter",
    model="gemini-2.0-flash-exp",
    instruction="You are a friendly greeter.",
)

# Instantiate our concrete custom agent
task_doer = TaskExecutor()

# Create a parent agent and assign its sub-agents
# The parent agent's description and instructions should guide its delegation logic.
coordinator = LlmAgent(
    name="Coordinator",
    model="gemini-2.0-flash-exp",
    description="A coordinator that can greet users and execute tasks.",
    instruction="When asked to greet, delegate to the Greeter. When asked to perform a task, delegate to the TaskExecutor.",
    sub_agents=[
        greeter,
        task_doer,
    ],
)

# The ADK framework automatically establishes the parent-child relationships.
# These assertions will pass if checked after initialization.
assert greeter.parent_agent == coordinator
assert task_doer.parent_agent == coordinator

print("Agent hierarchy created successfully.")

This code excerpt illustrates the employment of the LoopAgent within the Google ADK framework to establish iterative workflows. The code defines two agents: ConditionChecker and ProcessingStep. ConditionChecker is a custom agent that checks a "status" value in the session state. If the "status" is "completed", ConditionChecker escalates an event to stop the loop. Otherwise, it yields an event to continue the loop. ProcessingStep is an LlmAgent using the "gemini-2.0-flash-exp" model. Its instruction is to perform a task and set the session status to "completed" if it's the final step. A LoopAgent named StatusPoller is created. StatusPoller is configured with max_iterations=10. StatusPoller includes both ProcessingStep and an instance of ConditionChecker as sub-agents. The LoopAgent will execute the sub-agents sequentially for up to 10 iterations, stopping if ConditionChecker finds the status is "completed".

该片段展示如何在 Google ADK 中使用 LoopAgent 构造迭代工作流：ConditionChecker 读取会话状态中的 status，若为 completed，则触发 escalate 动作以结束循环，否则继续下一轮；ProcessingStep 是一个 LlmAgent，其指令要求在最后一步将 status 置为 completed；名为 StatusPoller 的 LoopAgent 将 max_iterations 设为 10，子智能体会按顺序反复执行，直到条件满足或达到迭代上限。

import asyncio
from typing import AsyncGenerator

from google.adk.agents import LoopAgent, LlmAgent, BaseAgent
from google.adk.events import Event, EventActions
from google.adk.agents.invocation_context import InvocationContext


# Best Practice: Define custom agents as complete, self-describing classes.
class ConditionChecker(BaseAgent):
    """A custom agent that checks for a 'completed' status in the session state."""
    name: str = "ConditionChecker"
    description: str = "Checks if a process is complete and signals the loop to stop."

    async def _run_async_impl(
        self, context: InvocationContext
    ) -> AsyncGenerator[Event, None]:
        """Checks state and yields an event to either continue or stop the loop."""
        status = context.session.state.get("status", "pending")
        is_done = status == "completed"

        if is_done:
            # Escalate to terminate the loop when the condition is met.
            yield Event(author=self.name, actions=EventActions(escalate=True))
        else:
            # Yield a simple event to continue the loop.
            yield Event(author=self.name, content="Condition not met, continuing loop.")


# Correction: The LlmAgent must have a model and clear instructions.
process_step = LlmAgent(
    name="ProcessingStep",
    model="gemini-2.0-flash-exp",
    instruction=(
        "You are a step in a longer process. Perform your task. "
        "If you are the final step, update session state by setting 'status' to 'completed'."
    ),
)


# The LoopAgent orchestrates the workflow.
poller = LoopAgent(
    name="StatusPoller",
    max_iterations=10,
    sub_agents=[
        process_step,
        ConditionChecker(),  # Instantiating the well-defined custom agent.
    ],
)

# This poller will now execute 'process_step'
# and then 'ConditionChecker' repeatedly until the status is 'completed'
# or 10 iterations have passed.

This code excerpt elucidates the SequentialAgent pattern within the Google ADK, engineered for the construction of linear workflows. This code defines a sequential agent pipeline using the google.adk.agents library. The pipeline consists of two agents, step1 and step2. step1 is named Step1_Fetch and its output will be stored in the session state under the key data. step2 is named Step2_Process and is instructed to analyze the information stored in session.state["data"] and provide a summary. The SequentialAgent named "MyPipeline" orchestrates the execution of these sub-agents. When the pipeline is run with an initial input, step1 will execute first. The response from step1 will be saved into the session state under the key "data". Subsequently, step2 will execute, utilizing the information that step1 placed into the state as per its instruction. This structure allows for building workflows where the output of one agent becomes the input for the next. This is a common pattern in creating multi-step AI or data processing pipelines.

该片段说明 Google ADK 中由 SequentialAgent 构成的线性流水线：Step1_Fetch 将输出写入 session.state["data"]；Step2_Process 再依据状态中的数据生成摘要；MyPipeline 负责按顺序编排子智能体，使前一步产出成为后一步输入。这种模式广泛见于多步 AI 或数据处理流水线。

from google.adk.agents import SequentialAgent, Agent


# This agent's output will be saved to session.state["data"]
step1 = Agent(
    name="Step1_Fetch",
    output_key="data",
)

# This agent will use the data from the previous step.
# We instruct it on how to find and use this data.
step2 = Agent(
    name="Step2_Process",
    instruction="Analyze the information found in state['data'] and provide a summary.",
)

pipeline = SequentialAgent(
    name="MyPipeline",
    sub_agents=[step1, step2],
)

# When the pipeline is run with an initial input, Step1 will execute,
# its response will be stored in session.state["data"], and then
# Step2 will execute, using the information from the state as instructed.

The following code example illustrates the ParallelAgent pattern within the Google ADK, which facilitates the concurrent execution of multiple agent tasks. The data_gatherer is designed to run two sub-agents concurrently: weather_fetcher and news_fetcher. The weather_fetcher agent is instructed to get the weather for a given location and store the result in session.state["weather_data"]. Similarly, the news_fetcher agent is instructed to retrieve the top news story for a given topic and store it in session.state["news_data"]. Each sub-agent is configured to use the "gemini-2.0-flash-exp" model. The ParallelAgent orchestrates the execution of these sub-agents, allowing them to work in parallel. The results from both weather_fetcher and news_fetcher would be gathered and stored in the session state. Finally, the example shows how to access the collected weather and news data from the final_state after the agent's execution is complete.

以下示例展示 ParallelAgent 如何并发调度多路任务：data_gatherer 同时驱动 weather_fetcher 与 news_fetcher，分别将结果写入 session.state["weather_data"] 和 session.state["news_data"]；两个子智能体都配置为 gemini-2.0-flash-exp；运行结束后，可从 final_state 汇总读取两侧产出（示意性片段）。

from google.adk.agents import Agent, ParallelAgent


# It's better to define the fetching logic as tools for the agents.
# For simplicity in this example, we'll embed the logic in the agent's instruction.
# In a real-world scenario, you would use tools.

# Define the individual agents that will run in parallel
weather_fetcher = Agent(
    name="weather_fetcher",
    model="gemini-2.0-flash-exp",
    instruction="Fetch the weather for the given location and return only the weather report.",
    output_key="weather_data",  # The result will be stored in session.state["weather_data"]
)

news_fetcher = Agent(
    name="news_fetcher",
    model="gemini-2.0-flash-exp",
    instruction="Fetch the top news story for the given topic and return only that story.",
    output_key="news_data",  # The result will be stored in session.state["news_data"]
)

# Create the ParallelAgent to orchestrate the sub-agents
data_gatherer = ParallelAgent(
    name="data_gatherer",
    sub_agents=[
        weather_fetcher,
        news_fetcher,
    ],
)

The provided code segment exemplifies the "Agent as a Tool" paradigm within the Google ADK, enabling an agent to utilize the capabilities of another agent in a manner analogous to function invocation. Specifically, the code defines an image generation system using Google's LlmAgent and AgentTool classes. It consists of two agents: a parent artist_agent and a sub-agent image_generator_agent. The generate_image function is a simple tool that simulates image creation, returning mock image data. The image_generator_agent is responsible for using this tool based on a text prompt it receives. The artist_agent's role is to first invent a creative image prompt. It then calls the image_generator_agent through an AgentTool wrapper. The AgentTool acts as a bridge, allowing one agent to use another agent as a tool. When the artist_agent calls the image_tool, the AgentTool invokes the image_generator_agent with the artist's invented prompt. The image_generator_agent then uses the generate_image function with that prompt. Finally, the generated image (or mock data) is returned back up through the agents. This architecture demonstrates a layered agent system where a higher-level agent orchestrates a lower-level, specialized agent to perform a task.

该段展示 Google ADK 中的「智能体即工具」范式：父级 artist_agent 与专门生成图像的子智能体 image_generator_agent 协同工作；generate_image 用模拟数据返回图像字节；artist_agent 先生成创意提示，再通过 AgentTool 调用 image_generator_agent；下层智能体调用工具并回传（模拟）图像数据，体现出由高层编排、低层专职承接的分层结构。

from google.adk.agents import LlmAgent
from google.adk.tools import agent_tool
from google.genai import types


# 1. A simple function tool for the core capability.
# This follows the best practice of separating actions from reasoning.
def generate_image(prompt: str) -> dict:
    """
    Generates an image based on a textual prompt.

    Args:
        prompt: A detailed description of the image to generate.

    Returns:
        A dictionary with the status and the generated image bytes.
    """
    print(f"TOOL: Generating image for prompt: '{prompt}'")
    # In a real implementation, this would call an image generation API.
    # For this example, we return mock image data.
    mock_image_bytes = b"mock_image_data_for_a_cat_wearing_a_hat"
    return {
        "status": "success",
        # The tool returns the raw bytes, the agent will handle the Part creation.
        "image_bytes": mock_image_bytes,
        "mime_type": "image/png",
    }


# 2. Refactor the ImageGeneratorAgent into an LlmAgent.
# It now correctly uses the input passed to it.
image_generator_agent = LlmAgent(
    name="ImageGen",
    model="gemini-2.0-flash",
    description="Generates an image based on a detailed text prompt.",
    instruction=(
        "You are an image generation specialist. Your task is to take the user's request "
        "and use the `generate_image` tool to create the image. "
        "The user's entire request should be used as the 'prompt' argument for the tool. "
        "After the tool returns the image bytes, you MUST output the image."
    ),
    tools=[generate_image],
)


# 3. Wrap the corrected agent in an AgentTool.
# The description here is what the parent agent sees.
image_tool = agent_tool.AgentTool(
    agent=image_generator_agent,
    description="Use this tool to generate an image. The input should be a descriptive prompt of the desired image.",
)


# 4. The parent agent remains unchanged. Its logic was correct.
artist_agent = LlmAgent(
    name="Artist",
    model="gemini-2.0-flash",
    instruction=(
        "You are a creative artist. First, invent a creative and descriptive prompt for an image. "
        "Then, use the `ImageGen` tool to generate the image using your prompt."
    ),
    tools=[image_tool],
)

At a Glance

What: Complex problems often exceed the capabilities of a single, monolithic LLM-based agent. A solitary agent may lack the diverse, specialized skills or access to the specific tools needed to address all parts of a multifaceted task. This limitation creates a bottleneck, reducing the system's overall effectiveness and scalability. As a result, tackling sophisticated, multi-domain objectives becomes inefficient and can lead to incomplete or suboptimal outcomes.

是什么： 复杂问题往往超出单体 LLM 智能体的能力边界。单一智能体可能缺少完成多面任务所需的专精技能或工具权限，从而形成瓶颈，拖累整体效能与可扩展性，使跨领域的复杂目标难以高效完成，结果也容易不理想。

Why: The Multi-Agent Collaboration pattern offers a standardized solution by creating a system of multiple, cooperating agents. A complex problem is broken down into smaller, more manageable sub-problems. Each sub-problem is then assigned to a specialized agent with the precise tools and capabilities required to solve it. These agents work together through defined communication protocols and interaction models like sequential handoffs, parallel workstreams, or hierarchical delegation. This agentic, distributed approach creates a synergistic effect, allowing the group to achieve outcomes that would be impossible for any single agent.

为什么： 多智能体协作模式提供了一种可复用的典型思路：先把复杂问题拆成更小的单元，再分别交给具备相应工具与能力的专精智能体处理；这些智能体再通过统一的通信协议，以顺序交接、并行工作流或层级委派等方式协同。这样就能形成整体大于部分之和的效果，完成任何单体都难以独立完成的任务。

Rule of thumb: Use this pattern when a task is too complex for a single agent and can be decomposed into distinct sub-tasks requiring specialized skills or tools. It is ideal for problems that benefit from diverse expertise, parallel processing, or a structured workflow with multiple stages, such as complex research and analysis, software development, or creative content generation.

经验法则： 当任务对单一智能体来说过于复杂，且可以拆成依赖不同技能或工具的子任务时，就适合采用这一模式。它尤其适用于需要多元专长、并行加速或多阶段结构化流程的场景，例如复杂研究分析、软件开发或创意内容生产。

Visual summary:

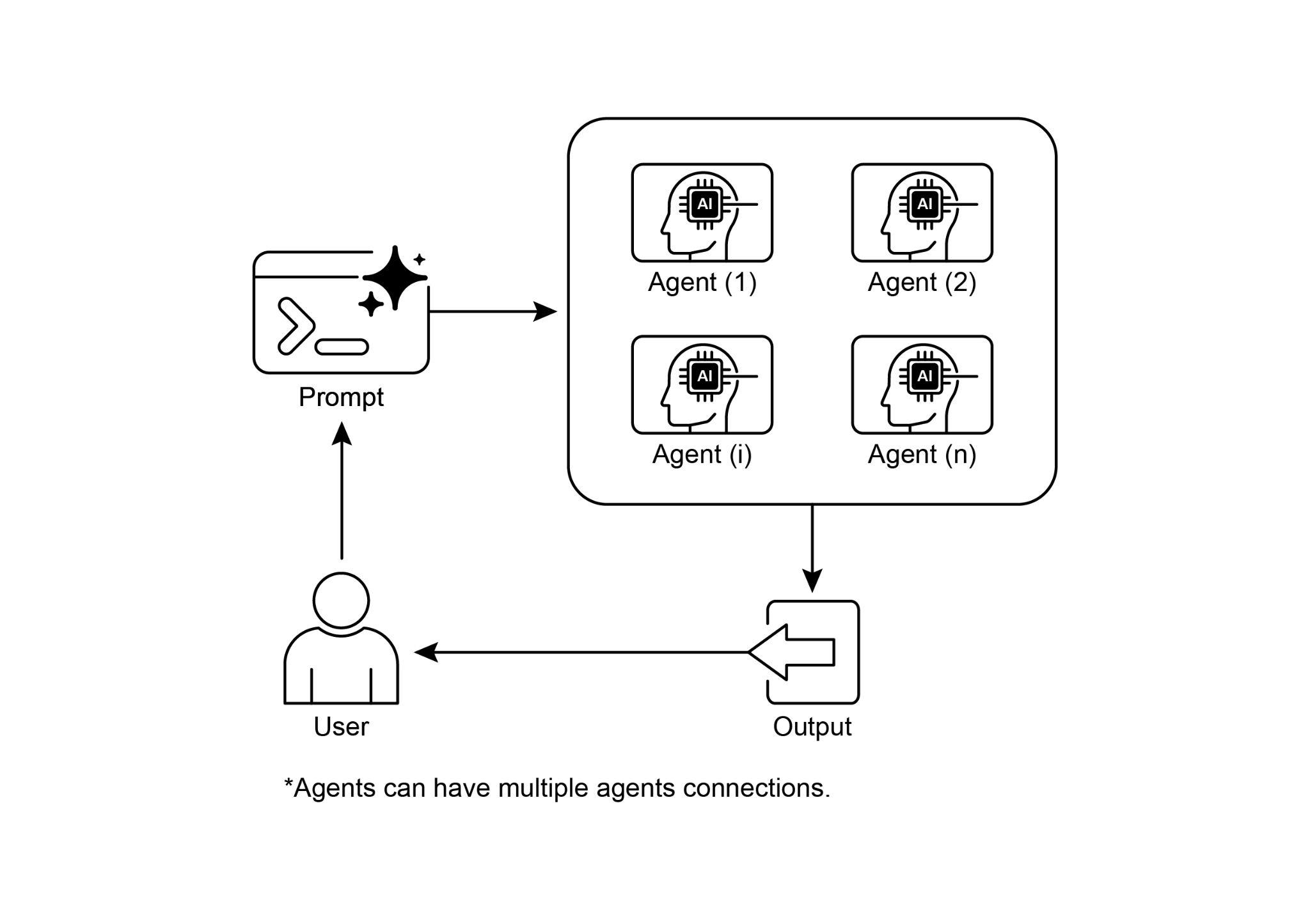

Fig.3: Multi-Agent design pattern

图 3：多智能体协作设计模式。

Key Takeaways

• Multi-agent collaboration involves multiple agents working together to achieve a common goal.
• This pattern leverages specialized roles, distributed tasks, and inter-agent communication.
• Collaboration can take forms like sequential handoffs, parallel processing, debate, or hierarchical structures.
• This pattern is ideal for complex problems requiring diverse expertise or multiple distinct stages.

• 多智能体协作指多个智能体围绕同一目标协同工作。
• 该模式依托角色专精、任务的分布式划分以及智能体之间的通信机制。
• 协作可以表现为顺序交接、并行处理、辩论共识或层级结构等多种形式。
• 它尤其适合需要多元专长或包含多个清晰阶段的复杂问题。

Conclusion

This chapter explored the Multi-Agent Collaboration pattern, demonstrating the benefits of orchestrating multiple specialized agents within systems. We examined various collaboration models, emphasizing the pattern's essential role in addressing complex, multifaceted problems across diverse domains. Understanding agent collaboration naturally leads to an inquiry into their interactions with the external environment.

本章梳理了多智能体协作模式，说明在系统中编排多名专精智能体所能带来的收益，并回顾了多种协作拓扑，凸显该模式在应对跨领域、多侧面复杂问题时的核心价值。理解智能体之间如何协作，也自然会引出另一个问题：它们究竟如何与外部环境交互。

References

1. Multi-Agent Collaboration Mechanisms: A Survey of LLMs, https://arxiv.org/abs/2501.06322
2. Multi-Agent System — The Power of Collaboration, https://aravindakumar.medium.com/introducing-multi-agent-frameworks-the-power-of-collaboration-e9db31bba1b6
